Extended limits for larger components

Welding technology for large diameter
application is developed

New power train technologies and adapted
designs require larger diameters

High strength materials are needed to apply
high torque of electric powertrain

welding of large diameters

Welding technology with most
uniform weld current distribution

Welding technology with most
uniform weld current distribution

Welding applications beyond the portal frame will be realized with a TRIPOD.
It allows the most uniform weld current distribution possible.

Welding applications beyond the portal frame will be realized with a TRIPOD.

It allows the most uniform weld current distribution possible.

CD TRIPOD

3 transformers
Energy range 160 – 240 KJoule





CD TRIPOD

3 transformers
Energy range 160 – 240 KJoule

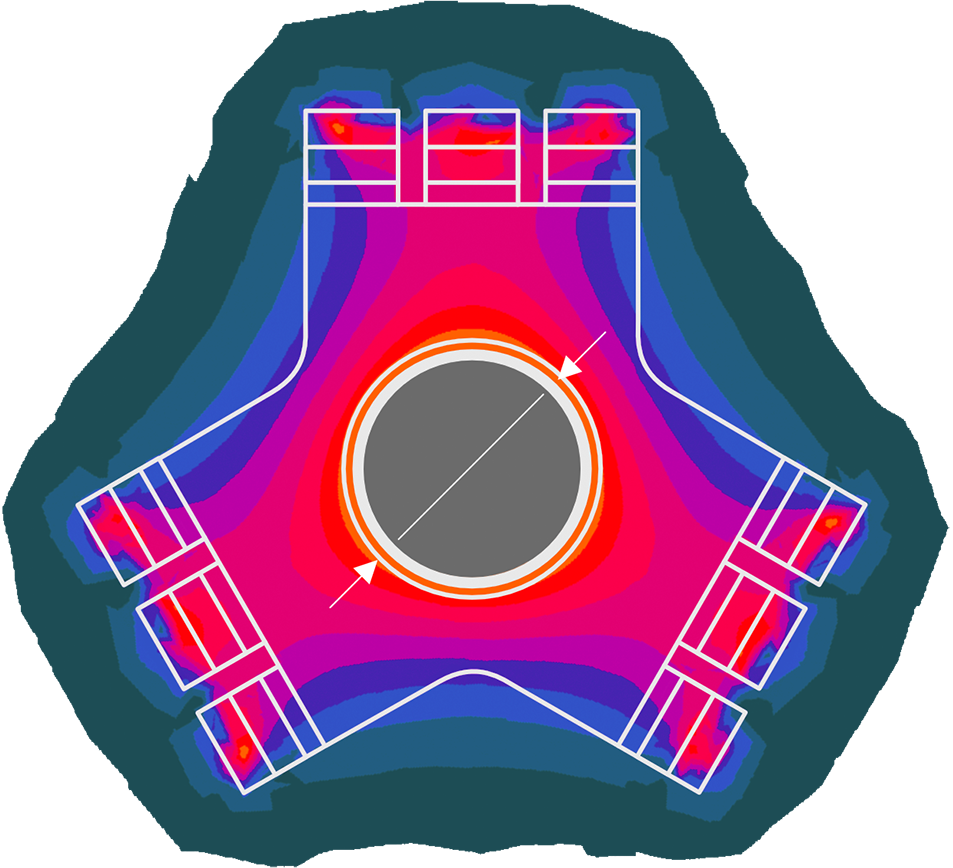

Simulated magnetic field
TRIPOD frame welding machine
Weld diameter up to 275 mm

Simulated magnetic field

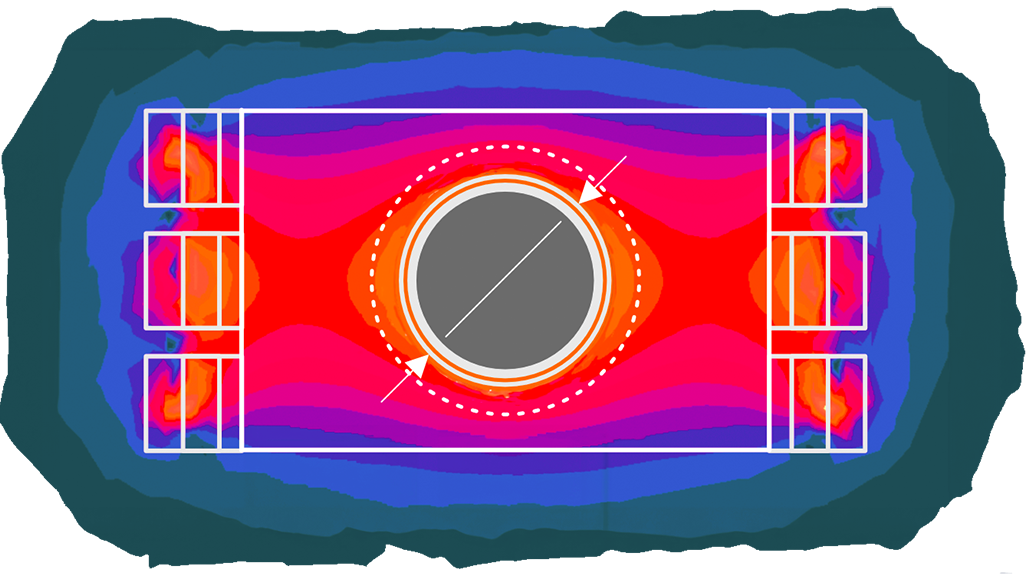

Portal frame welding machine
Weld diameter up to 190 mm

Simulated magnetic field
TriPod frame welding machine
Weld diameter up to 275 mm

Simulated magnetic field
Portal frame welding machine
Weld diameter up to 190 mm

Process phenomena
at lage diameters

• Homogeneous magnetic field

– Homogeneous current density
– Constant weld width
– Constant weld connection

Technical data
GKS-TRIPOD

• Weld energy up to 240 kJ
• Weld current up to 1.500 kA
• Weld diameter up to 275 mm

Further new
developments …

Welding with high energy pulse made flexible
